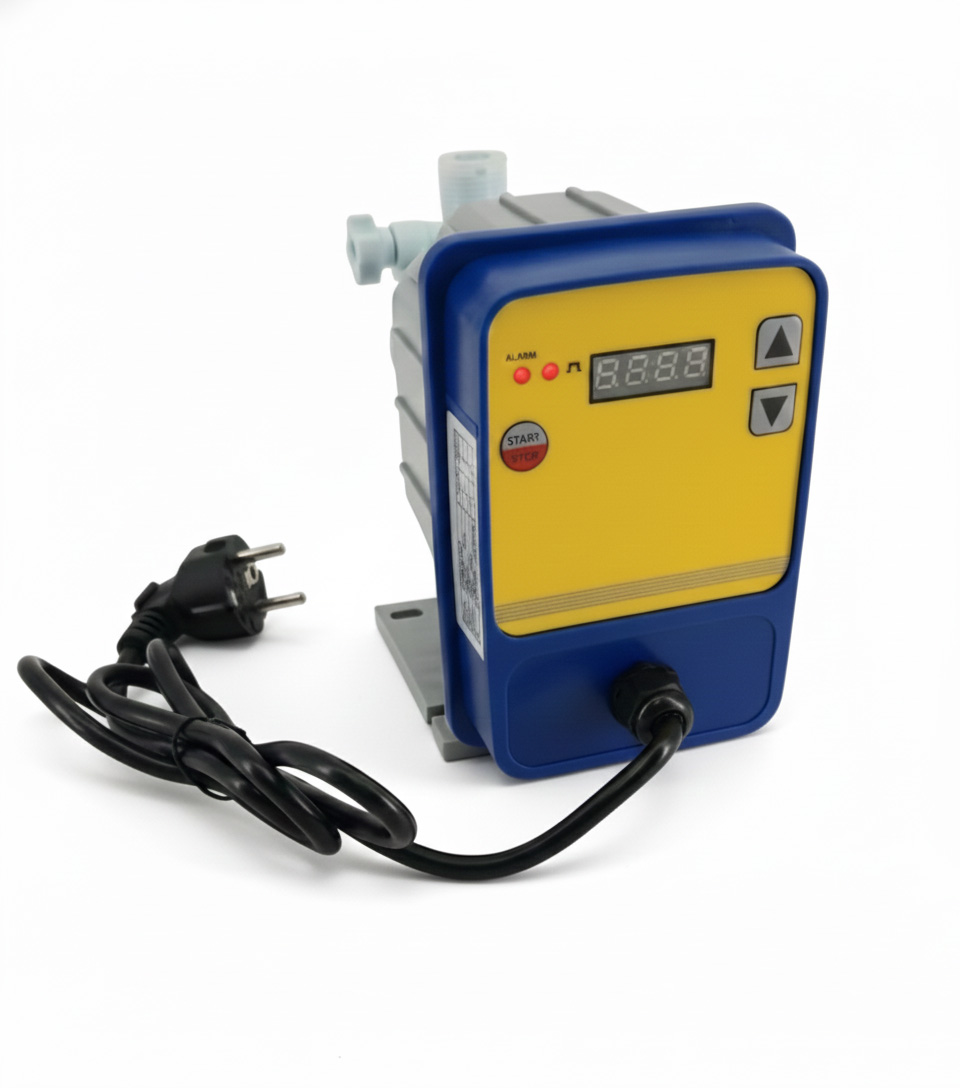

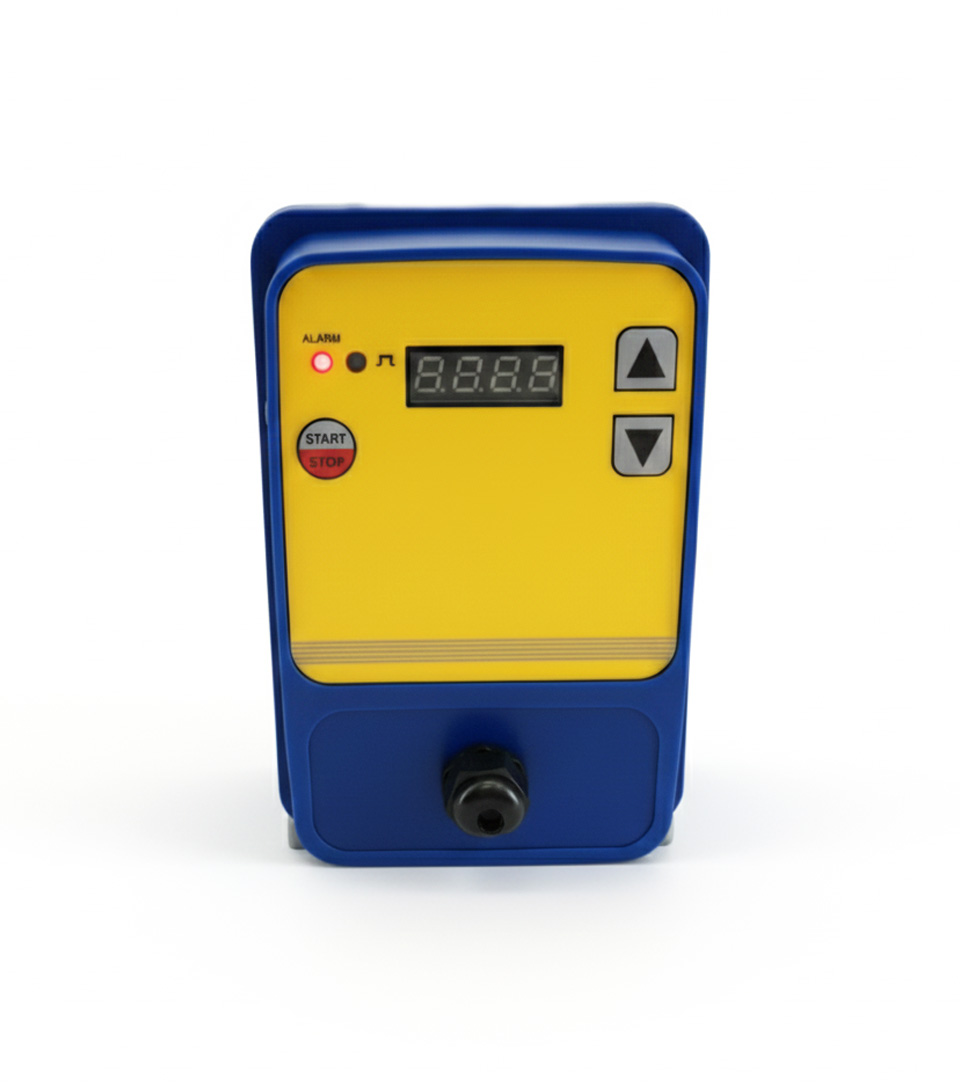

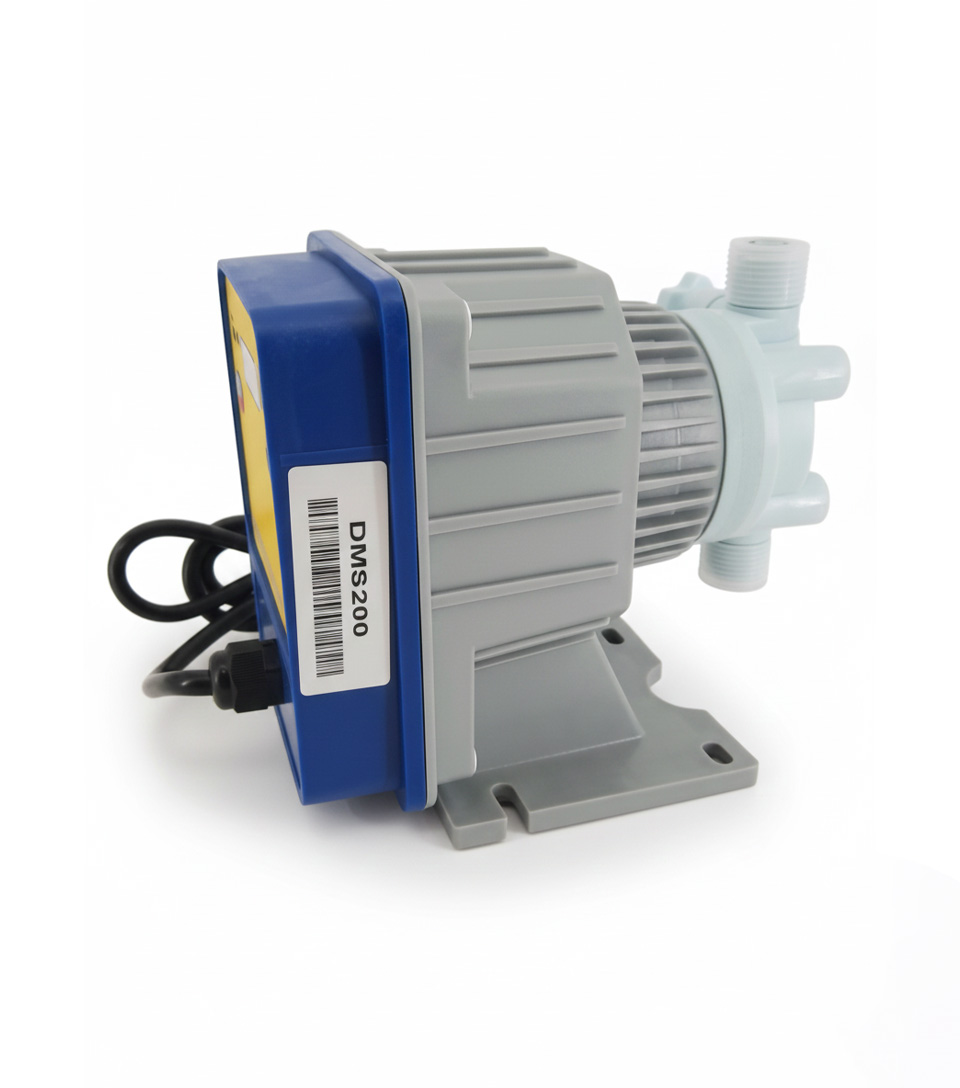

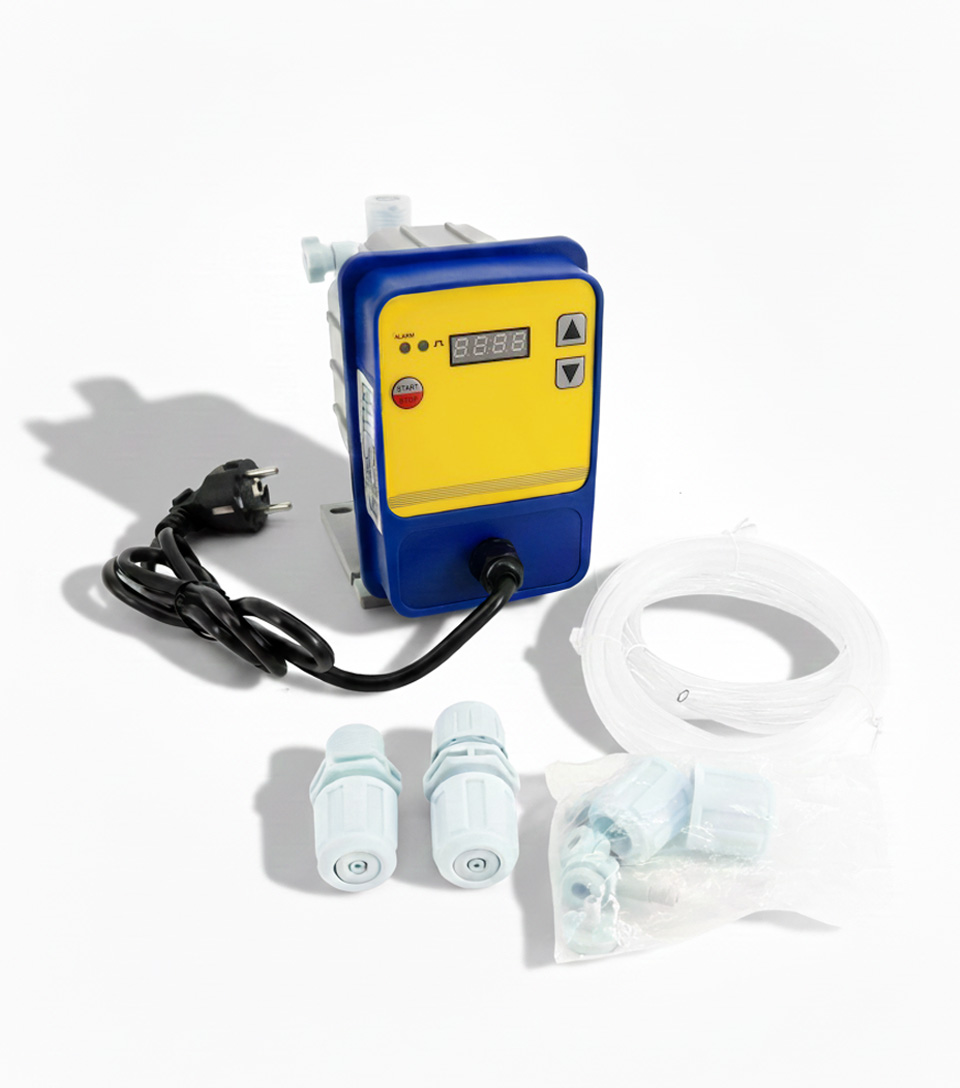

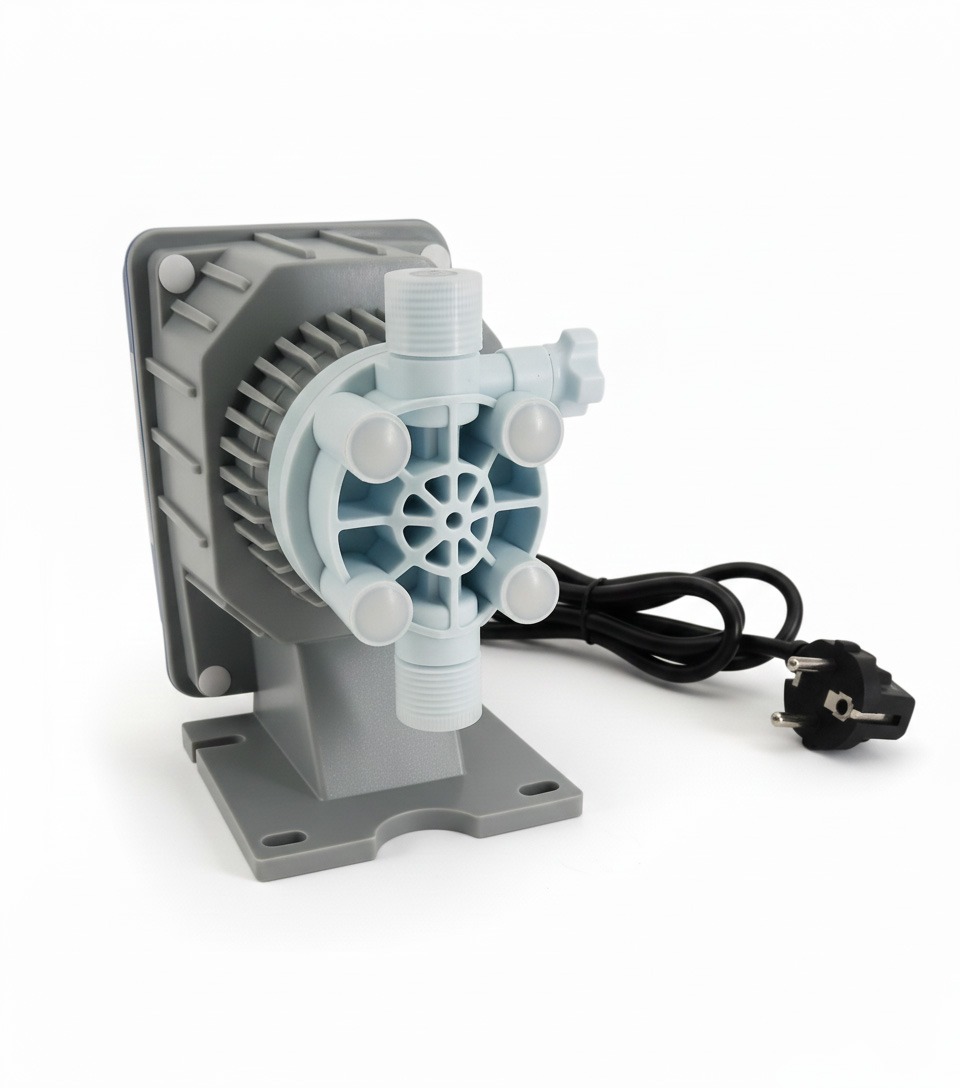

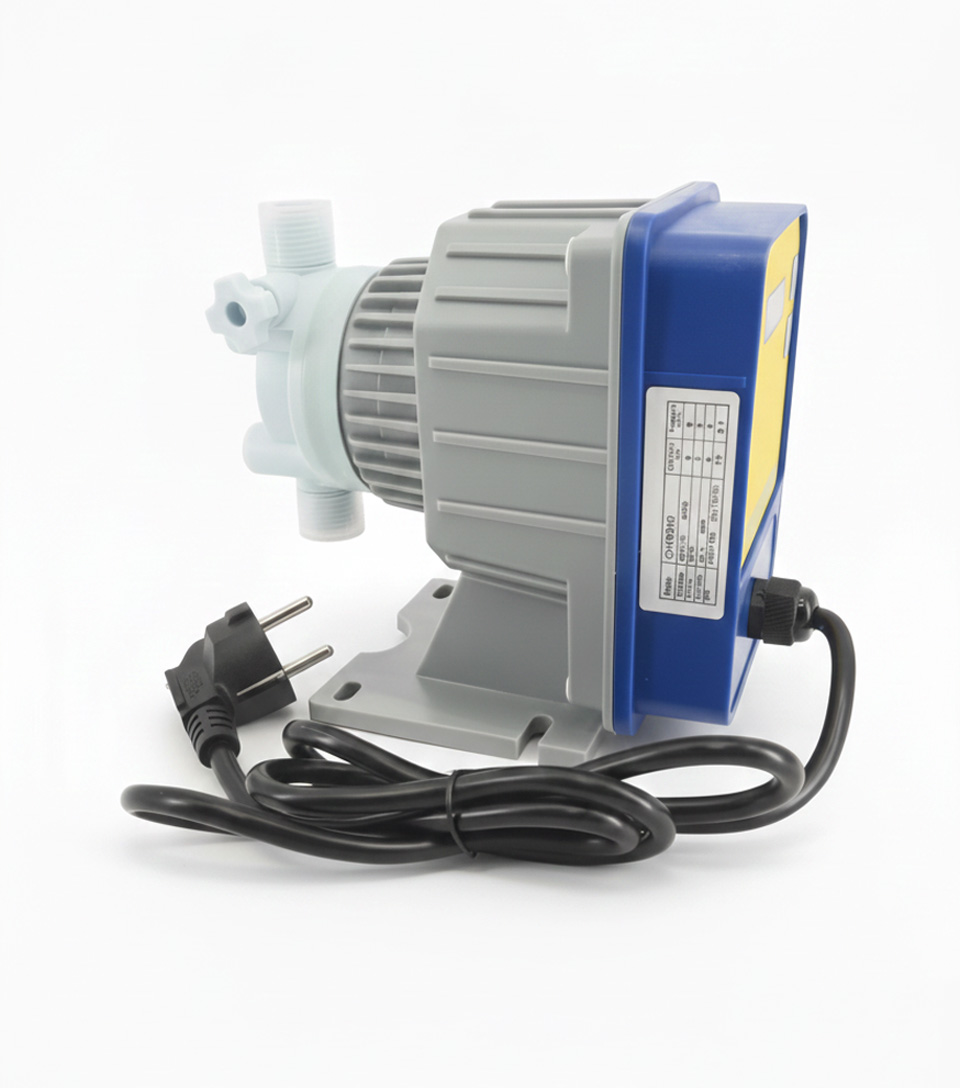

Dosing Pump WF-ECO-14 for Reverse Osmosis Systems

The DMS200 metering pump is an electromagnetic refracting pump designed for water treatment applications. The pump is corrosion resistant, making it suitable for a variety of commercial purposes.

Standards:

• Model: DMS200:
• Estimated flow: The pump offers an estimated flow of 3-9 liters per hour (L/H).
• Estimated voltage: The pump operates at the estimated voltage of 220V.
• Frequency: It works at the frequency of 50Hz.
• Construction material: The pump housing is made of ABS (Acrylonitrile Butadiene Styrene), a material characterized by durability and impact resistance.
• Rated pressure: The DMS200 has a rated pressure of 2-10 bar.
• Estimated power: The pump consumes 14W of power during operation.
• Self-priming: It has a self-priming capability of up to 2 meters, which means it can start vacuuming without the need for external suction.
• Package dimensions: The package dimensions are 280 * 205 * 180mm.

Applications: The metering pump is specially designed for water treatment applications such as reverse osmosis systems. It is probably used to accurately dose and peak flow chemical additives to water to achieve desired treatment results such as disinfection, pH adjustment, or other water quality improvements.

Rated flow: 3-9L/H; 1L/H
Rated voltage: 220V
Frequency: 50HZ
Shell material: ABS
Rated pressure: 2-10bar/7bar
Rated power: 14W
Self-priming: 2M
Packing size: 280*205*180MM
